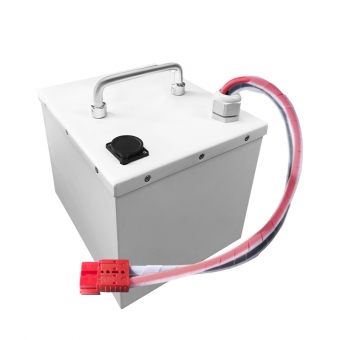

E-Scooter LiFePO4 Battery

Production Basic Information		Remark
Standard charge	0.2C constant current(CC) charge to 67.2Vthen constant voltage (CV) 67.2V charge till charge current decline to ≤0.05C	Charge time :Approx 7h
Standard discharge	Constant current 0.2C，Cut-off voltage 10V
Maximum Charge Current	10A
Maximum Continuous Discharge Current	＜70A
Operation Temperature Range	Charge: 0～45℃	60±25%R.H. 23 ± 5°C（ recommended）
Operation Temperature Range	Discharge: -20～60℃（cell surface temperature≤80℃）	60±25%R.H. 23 ± 5°C（ recommended）
Storage Temperature Range	Less than 1 year : 0～25℃	60±25%R.H. at the shipment state
Storage Temperature Range	Less than 3 months:-5～35℃	60±25%R.H. at the shipment state
Approx. Weight	≈9.2Kg
Internal resistance	≤70mΩ	1KHz，AC
Dimension	LWH=（171165180mm）±1mm
Terminals	Anderson SA120
IP Rating	IP56
